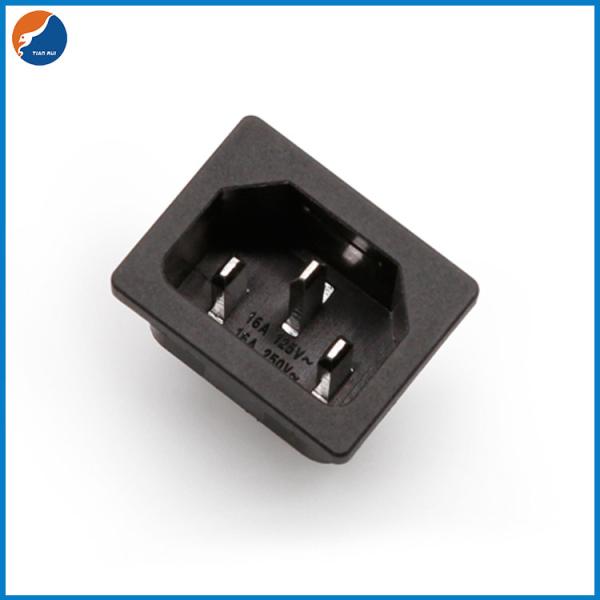

R14-A-1DB1 10A 15A 125V 250V Inlet C14 Male AC Power Socket for Plug Snap in Connector
Specification of Male AC Power Socket
1. Rating: 10A 250V&15A 16A 125V
2. Contact resistance: 30m Ωmax
3. Housing: PC UL94V-0
4. PIN & TERMINALS: COPPER ALLOY,TIN PLATED
5. Dielectric strength: 1.500 VAC/1Min
6. Insulation resistance: 100MΩ Min
7. Operating force: 1.5‾5kgf 4. Pull the screw of terminal 60N
8. Solderability test: 230 ± 5 ° C / 3S
9. Curing heat resistance: 260 ± 5 ° C / 5S
10. Life test: 6000cycle
11. Heat resistance: 80 ± 2 ° C / 96h
12. Cold resistance: -20 ± 2 ° C / 96h
13. 24-hour salt spray test
| Unique Features : Ensure Free of |
| Discontinuity | Short Circuit on Rear Plane |
| Hi-Pot Breaking | Arcing |
Application of C14 Male AC Power Socket
Desktop adapters, household appliances (TV set, electric kettle, coffee machine, hot milk machine, air purifier, humidifier, etc.), office equipment, fax machines, printers, counterfeit detector, etc.), medical equipment, network equipment, display equipment and so on Ⅱ, such equipment is no grounding device of the equipment.
Drawing of 10A 15A 125V 250V AC Power Socket
